PRODUCT INTRODUCTION:
Max Lamination Speed: 50M/Minute
Max Lamination Width: 1630mm/64″
Roller Up and Down: Pneumatic Pressure
PRODUCT INTRODUCTION

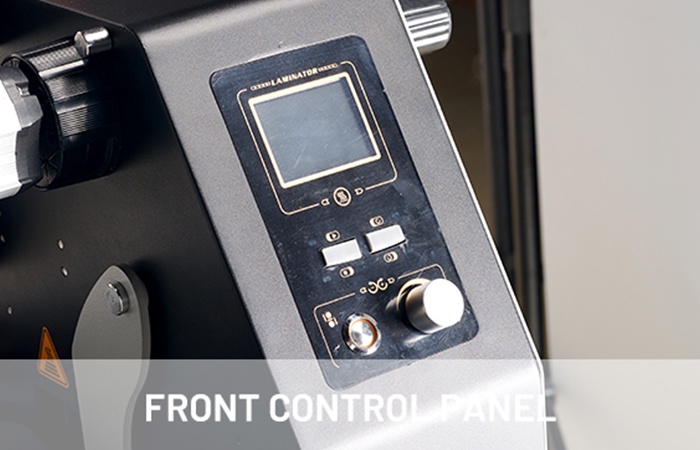

Smart Entry System — Front Panel
LeFu LF1700-F1 Plus Automatic Roll Hot and Cold Laminator Max Lamination Width: 1630mm, Max Lamination Temp: 0~60°C/0~140°F (0~120°C/0~248°F Optional), Max lamination Speed: 18 M/Min.

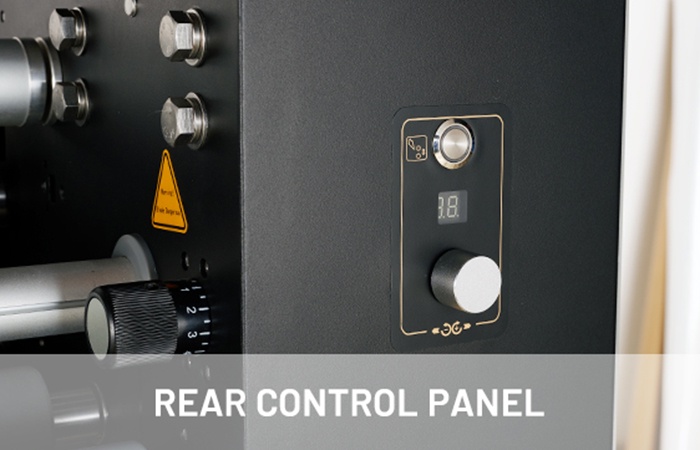

Smart Entry System — Rear Panel
LeFu LF1700-F1 Plus Automatic Roll Laminator is equipped with a user-friendly front intelligent LCD control panel, making operation intuitive and convenient. It features a pulse-type speed control knob that allows for precise and durable adjustments of lamination speed, temperature, and lamination statistics. The real-time meter count function tracks lamination meters over the past 30 days.

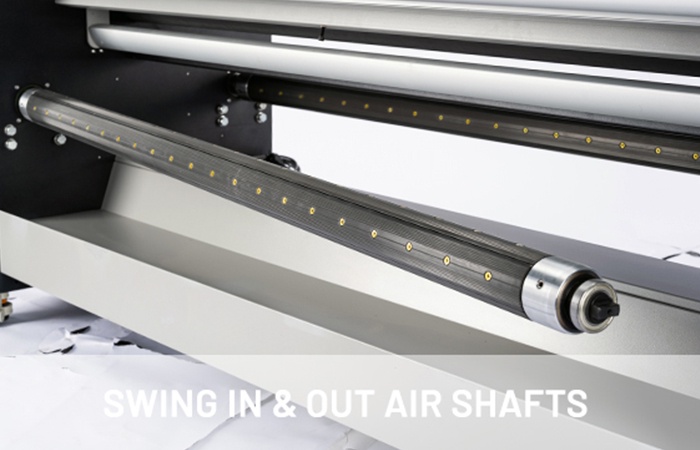

Swing In & Out Air Shafts

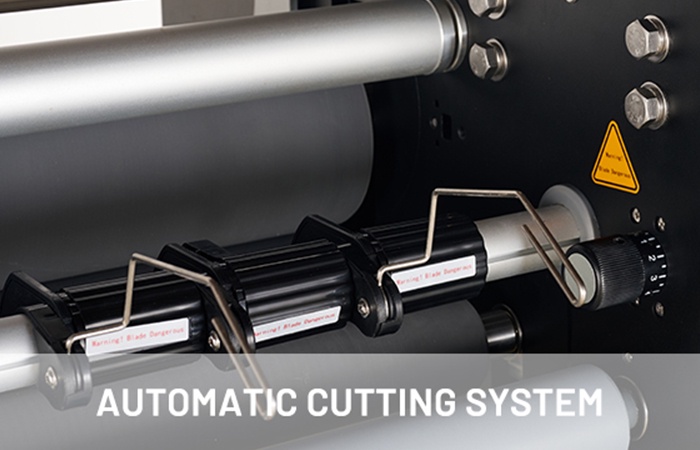

LF1700-F1 Plus Automatic Laminator includes three rear tungsten steel trimmers designed for high-efficiency trimming, with a usage capacity exceeding 15,000 meters. The trimmer fine-tuning switch allows for precise adjustments to ensure optimal trimming positions. The machine can perform laminating and vertical cutting simultaneously, offering flexibility as customers can select additional cutters based on their needs.
Safety Vertical Cutters
LeFu LF1700-F1 Plus Automatic Laminator boasts a stable and durable frame capable of handling up to 200 meters of vinyl sticker lamination. It effectively removes static during high-speed operations, protecting electrical components from damage caused by static electricity. The laminator allows for setting a lamination meter; once the pre-set lamination is completed, the machine will automatically stop.

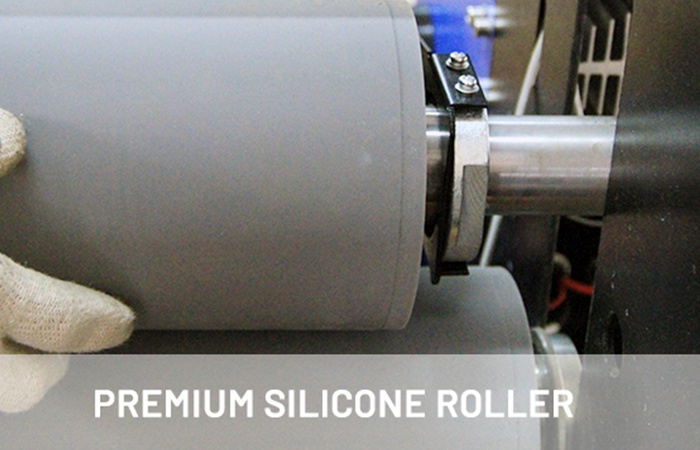

Premium Silicone Roller
LeFu LF1700-F1 Plus Automatic Laminator is designed to prevent bubbles and folds during the lamination process, featuring upper and lower rollers made from high-quality silicone and solid seamless steel tubes. The silicone roller is particularly notable for its long service life, even under high-temperature lamination conditions.

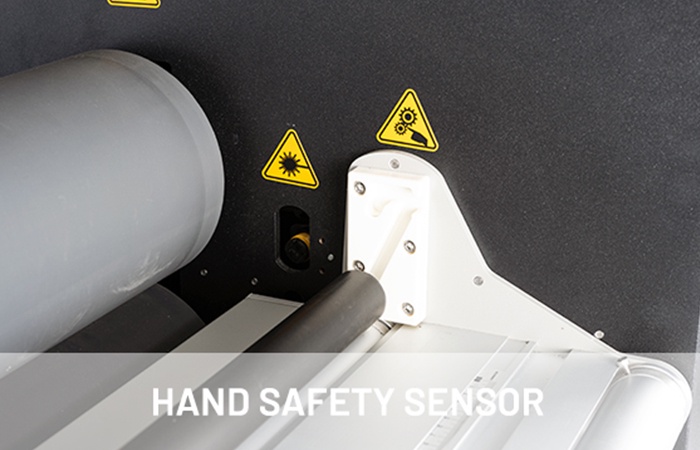

Hand Safety Sensor
LeFu LF1700-F1 Plus Automatic Laminator Safety is a priority with the built-in hand safety sensor, which ensures operator protection. In the event of foreign objects entering the laminator, the machine will stop and roll up automatically, accompanied by audible and visual alarms.

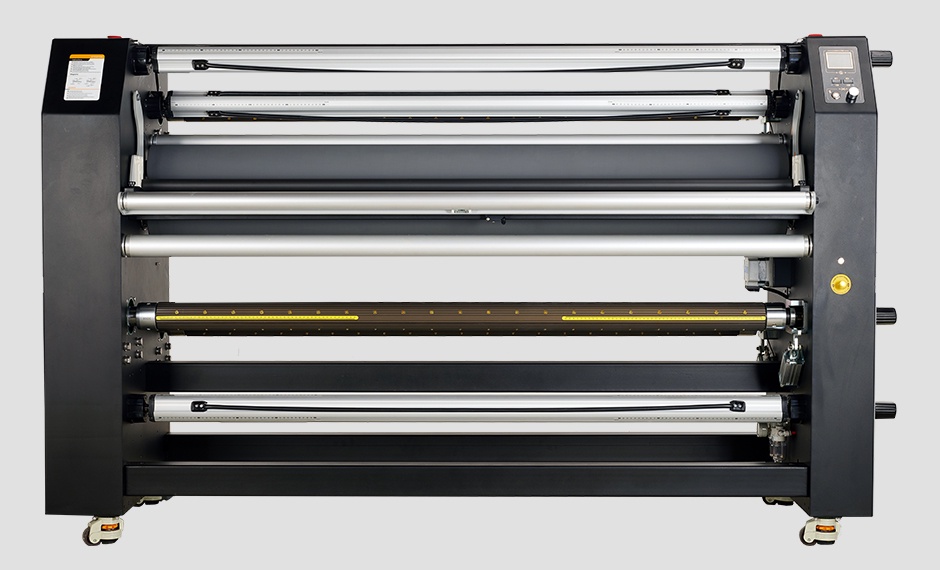

LF1700-F1 Plus Automatic Roll Laminator

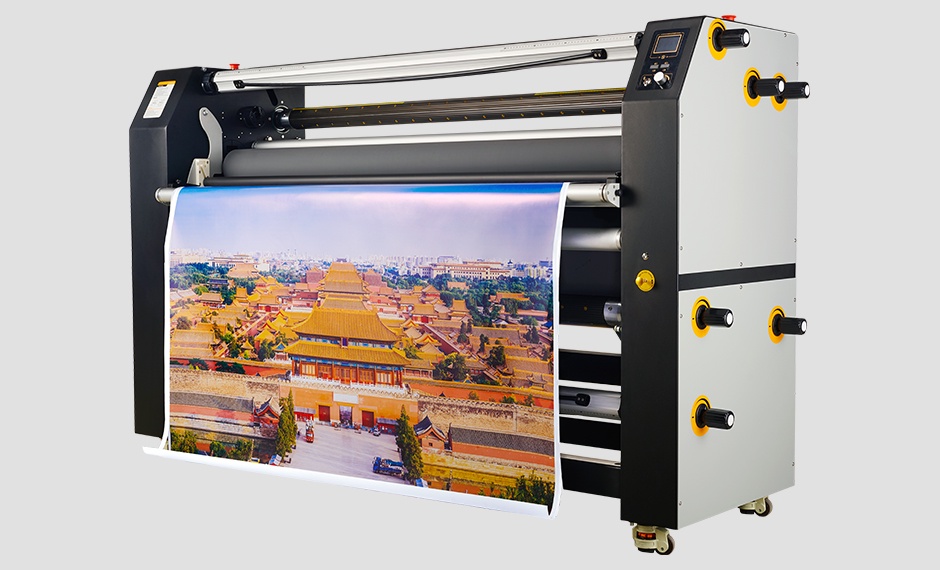

LF1700-F1 Plus Automatic Roll Laminator
